PS-C15 Linear Potentiometer

The PS-C15 series of Linear Potentiometers are designed to withstand the harsh environment of industrial and motorsport applications. Using proven ‘conductive plastic’ technology, these sensors offer high performance and reliability.

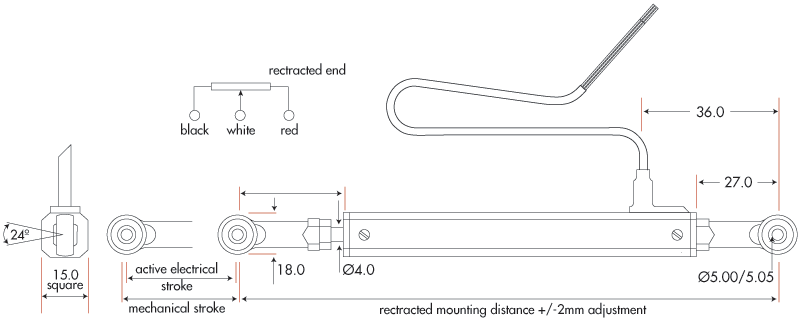

Technical Data PS-C15

Active Electrical Stroke (mm) 25 50 75 100 150 200 250
Retracted Mounting Distance (mm)* 173 198 223 248 298 351 401
Resistance ( KOhms +/-20% ) 2.5 5.0 7.5 10 10 10 10

Specifications

Maximum Supply Voltage 40 VDC
Resolution Essentially Infinite
Repeatability ≤ 0.01mm
Operational Speed 10 M/s max
Mechanical Life > 25 Million Cycles
Temperature Range -40 to +125˚C
Environmental Sealing IP65
Linearity Error less than 0.5%, (typical 0.25%)
Cable Type* Raychem 44A0111-24
Raychem Thermorad Jacket
nominal OD 3.4mm
24/26 AWG 55A option
55M is high strength copper silver plated
Cable Length* 350mm (extra length cost plus)
Track Technology Conductive Plastic
Housing Material Aluminium
Shaft Material Stainless Steel
Mechanical Fixings Spherical Bearings, Alloy Body. Mounting Hole Ø5.0mm.
Or Pop Joints (2 x mating Ball Pins supplied with each sensor).
